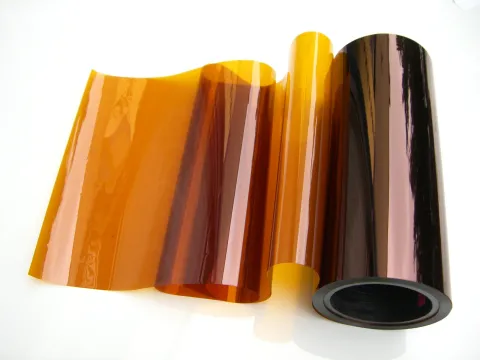

Ultra-High Modulus & Ultra-Low CTE Polyimide Film - for Extreme Dimensional Stability in Precision Applications

Ultra-High Modulus & Ultra-Low CTE Polyimide Film (PIU) - for Extreme Dimensional Stability in Ultra-High Precision Applications

Product Description:

In precision electronic and optoelectronic systems, dimensional stability is often the true performance limiter, not electrical design or software calibration.

Applications such as fine-pitch COF structures, advanced semiconductor packaging, precision sensor modules, high-resolution displays, and accuracy-critical electronic assemblies require materials that can maintain geometry, alignment, and position across temperature changes and processing cycles.

Ultra-High Modulus & Ultra-Low CTE PI Film (PIU) is engineered specifically for these environments, delivering exceptional mechanical stiffness and minimal thermal expansion, while maintaining high electrical insulation and dielectric strength.

Design Challenges in High Precision & Thermal Cycling Systems

Engineers working on high-precision systems commonly face:

• Dimensional drift during thermal processing or operation

• Misalignment in fine-pitch interconnects and bonding areas

• Accumulated positional error after repeated thermal cycles

• Limitations of conventional PI films with moderate modulus and higher CTE

• Trade-offs between stiffness, insulation, and process compatibility

In many cases, system accuracy degrades not because of electrical failure, but due to micron-level dimensional changes.

Our Ultra-High Modulus & Ultra-Low CTE PI Film (PIU) Approach

Our ultra-high modulus & ultra-low CTE PI Film PIU is engineered as a dimension-control PI film, designed to minimize mechanical and thermal deformation, featuring:

• Ultra-high modulus ≥ 7 GPa
  Providing exceptional stiffness to resist mechanical deformation

• Ultra-low coefficient of thermal expansion (CTE ≤ 15 ppm/°C)
  Minimizing dimensional change during temperature variation and processing

• High electrical insulation performance
  Supporting use near dense interconnects and active components

• High dielectric strength
  Ensuring electrical safety under high-voltage and high-density conditions

• Stable PI matrix for process reliability
  Maintaining properties through lamination, bonding, and thermal cycling

Unlike general-purpose polyimide films, PIU is designed to function as a precision structural substrate, not merely a flexible insulating layer.

How PIU Fits into High Precision System Architecture

Our Ultra-high modulus & Ultra-low CTE PI Film PIU is typically integrated as:

• A dimensionally stable substrate in fine-pitch COF and interconnect structures

• A mechanical reference layer in advanced packaging and sensor assemblies

• A stability-critical insulation layer where alignment accuracy must be preserved

• A low-drift base film supporting repeated thermal processing

By controlling modulus and CTE at the material level, PIU allows engineers to protect alignment, reduce cumulative error, and stabilize system performance over time.

Key Properties and Features:

1. Perfect Dimensional Stability: Maintains shape under thermal cycling
2. Ultra High Modulus ≥ 7 GPa: Reinforces fine-pitch structures without warping
3. Ultra Low Coefficient of Thermal Expansion (CTE ≤ 15 ppm/°C): Reduces mismatch with copper traces
4. High Temperature Resistance: Reliable up to demanding operating conditions
5. Excellent Electrical Insulation: Safe for sensitive electronic components
6. Outstanding Durability & Reliability: Long-term performance for high precision sensor modules and high-density fine pitch FPCs

Typical Applications:

1. Fine-Pitch COF (Chip-on-Film) & High-Density Interconnect Structures
2. Advanced Semiconductor Packaging & Module Substrates
3. Precision Sensor & Optical Modules
4. High-Resolution Display & Imaging Systems
5. Precision Electronics Requiring Long-Term Dimensional Control
6. Applications with Repeated Thermal Processing or Cycling

Designing systems where dimensional drift is not acceptable?

Contact us to discuss Ultra-High Modulus & Ultra-Low CTE PI Film (PIU) solutions tailored for your precision requirements, thermal environment, and reliability targets.
